Home ProductsElectric Pipe Beveling Machine

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

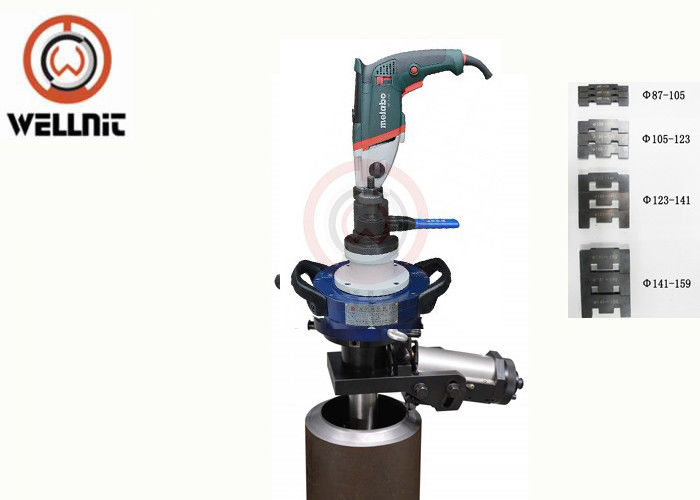

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min
Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min

Large Image :  Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISM-252-2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power: 220-240V 50-60Hz Operation: Penumatic
Pipe Thickness: Less Than 75 (Standard) Rotation: 16r/min
Working Method: No Spark,Cold Working Installation Way: Inside Mounted
Motor Power: 1600W Working Range: 80-273mm(Inside Diameter)
High Light:

tube facing machine

,

portable pipe beveler

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min



The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

This machine isn't standard product. It is designed according to requirement of customer. It has advantages of small size, good appearance, easy operation, high precision and good performance etc.

advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.

  •

Spcification:



ISM-252-2 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦75
Working Range 80-273mm
Rotation Speed 16r/min
Net Weight 58kg



Non-standard machines are available according to customers’requirement.




Model

Working Range (ID/OD)

Wall Thickness

Rotation Speed

ISM-30

Φ16-28
Φ19-38
≤15

50r/min

ISM-80

Φ28-76
Φ32-89
≤15

55r/min

ISM-120

Φ40-110

Φ48-120

≤15

30r/min

ISM-159

Φ65-159
Φ72-168
≤20

35r/min

ISM-252-1

Φ80-240
Φ90-273
≤20

16r/min

ISM-252-2

≤75

16r/min

ISM-352-1

Φ150-330

Φ160-356

≤20

14r/min

ISM-352-2

≤75

14r/min

ISM-426-1

Φ250-410

Φ260-430

≤20

12r/min

ISM-426-2

≤75

12r/min

ISM-630-1

Φ300-600

Φ320-630

≤20

10r/min

ISM-630-2

≤75

10r/min

ISM-850-1

Φ590-830

Φ610-850

≤20

9r/min

ISM-850-2

≤75

9r/min




Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min 0

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min 1

Internal Expanding Electric Pipe Beveling Machine Metabo Driven 16 R/min 2
