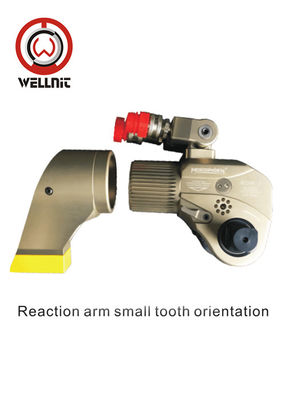

1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm

1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm
1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm 1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm 1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm

Large Image :  1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm

Product Details:
Place of Origin: China
Brand Name: wellnit
Certification: ISO9001
Model Number: SHTW-3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton
Delivery Time: within 7days after received 100% payment
Payment Terms: T/T
Supply Ability: 500sets/week
Detailed Product Description
Brand Name: Wellnit Model: SHTW-3
Torque: 451-4512 N.m Bolt Size: 22-48 M
Weight: 4 KG Square Drive: 1"
High Light:

hydraulic torque wrench

,

hyd torque wrench

1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm





Principle of hydraulic wrench



The hydraulic torque wrench is composed of a working head, an electric hydraulic pump, a double high



pressure oil pipe and a high strength sleeve. The power source is transmitted to the hydraulic torque



wrench by the electric hydraulic pump through the double high-pressure tubing. More specifically, the



pressure is generated by the motor motor inside the electric hydraulic pump after starting, and the



hydraulic oil is transmitted to the hydraulic torque wrench through the tubing medium, then the piston rod



of the hydraulic torque wrench is pushed forward and the piston rod is pushed by the piston rod. The



ratchet wheel driven by the front part of the spanner drives the ratchet wheel to drive the driving shaft to



complete the pre tightening work of the bolt.





1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm 0



Product Features



I. Patented integrated body design, more sturdy and durable



II. Rotary-return mechanism design, never-jam mechanism.



III. Hands-free operation, making the use more safety.



IV. Slim nose radius and 360°×180° swivel hose connection allow easier positioning



    in confined space.



V. High repeatability, with accuracy±3%



VI. 360°reaction arm, makes the wrench get better supporting



VII. Standard working pressure: 700par.





Model





Torque



Bolt Size



Weight



Square Drive



SHTW-1





183-1837



16-36



2



3/4”



SHTW-3





451-4512



22-48



4



1”



SHTW-5





752-7528



27-56



7



1-1/2”



SHTW-8





1078-10780



30-64



9.1



1-1/2”



SHTW-10





1551-15516



36-72



13.1



1-1/2”



SHTW-15





2063-20627



39-80



21



2-1/2”



SHTW-20





2666-26664



42-90



25



2-1/2”



SHTW-25





3472-34725



48-100



31



2-1/2”



SHTW-35





4866-48666



64-120



45



2-1/2”





Machine Parameter





Model





Torque N.m



Bolt Size M



Weight Kg



Square Drive





SHTW-3





451-4512



22-48



4



1”







1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm 1



L1



L2



H1



H2



H3



H4



R1



R2



169



242



68



95



127



176.5



34



134



Drive hydraulic torque wrench is driven by the drive shaft to achieve the corresponding specifications of



the sleeve nut pre-tightening, as long as the torque range allows, according to the replacement of the



corresponding high-strength sleeve to complete different specifications of bolts, for a universal hydraulic



wrench, a wide range of applications.



Hydraulic torque wrench is widely used in ship engineering, petrochemical industry, wind power,



hydropower, thermoelectricity, mining, machinery, steel plant, rubber, pipeline and other industries in the



construction, maintenance, emergency repair, hydraulic torque wrench for the installation and



disassembly of large specifications of bolts is a more important tool; The device is irreplaceable, not only



convenient to use, but also provides a very accurate torque, torque repetition accuracy of about 3%.



Actual Process Picture



1 Inch Alloy Handheld Hydraulic Tools Torque Wrench With 360° Reaction Arm 2
