High Strength Square Drive Hydraulic Torque Wrench Alloy Steel Double Action

High Strength Square Drive Hydraulic Torque Wrench Alloy Steel Double Action



Hollow hydraulic spanner hollow hydraulic spanner thickness is thin, especially suitable for narrow space.



Applicable to electric power (nuclear power, wind power, hydropower, thermal power), ships, metallurgy,



transportation, cement, construction, aviation and other fields.



Product Feature



1. Solved the problem that the bolt and pipe spacing is small, and the space in the bolt height



direction is small

2. Safe and reliable controllable bolting solution for flanges with limited space

3. A variety of wrenches are available to match most commonly used API flanges

4. Small head radius, which solves the problem of limited bolt and pipe spacing

5. The wrench is slender and reduces the restriction of the height direction of the bolt

6. Wrench complete specifications, short customization time

7. Made of ultra-high-strength alloy steel for improved durability and reduced failure

8. Universal power head compatible with KLCD/XLCD for greater applicability

9. After each working cycle of the wrench, the pump should be run in the return direction, the



wrench should be removed, and the tool should be repositioned. This tool does not have a stop



function.





1. adopt ultra-high strength light metal, thin design, double action, high speed and big turn horn.



2. card connected, interchangeable plug-in, no special tools, repeatability of torque up to + 3%.



3.360 degrees x 360 degrees rotary hose connection, suitable for compact occasions for easy



positioning.



4. the strength of the wrench is well designed, the overall reaction arm, less movable parts, durable and



reliable.



5. Extensible metric, British hexagonal plug-in and sleeve, can realize a power head equipped with multiple



plug-ins used at the same time



Model	Torque N.m	Hex.Size mm	Cylinder Kg	Link Kg
ZHTW-2	232-2328	19-55	1	1.6
	241-2414	60	1	1.7







L	H1	H2	W1	W2
196.4	125.9	102.3	32	51
196.4	128.5	105	32	51



Hollow hydraulic wrench is made of aluminum-titanium alloy and ultra-high strength alloy steel.



It is manually controlled and double-acting hydraulic design. It can lock and loosen bolt connection.



Widely used in various complex workplaces.



The torque is precise and the error is not more than + 3%.



Working pressure range 7Mpa-70Mpa.



1. Light weight, high strength, abrasion resistance: power head with integrated molding design, aluminum-



titanium alloy material production, working head with thin design, high strength cemented carbide



production.



2. Long service life: Drive/reaction mechanism is designed in the same line, power head does not



withstand twisting force, reliable and durable.



3. Suitable for small space operation: tubing joint can rotate freely in the same direction 360 x 180 at the



same time, more suitable for use in space-constrained occasions.



4. interchangeability is good: card type, swap plug-in, a power head can cooperate with a variety of



working heads.



5., the interior has an anti reverse die, which can overcome the reverse of the ratchet wheel caused by



the bolt deformation and springback.



6. parcel type safety design. In operation, only the collar drives the nut to rotate, and the safety is high.



7. Structural design of internal thick teeth ratchet to improve the load-bearing strength of rotating parts;



and each rotation when meshing a tooth to ensure the accuracy of each rotation angle.

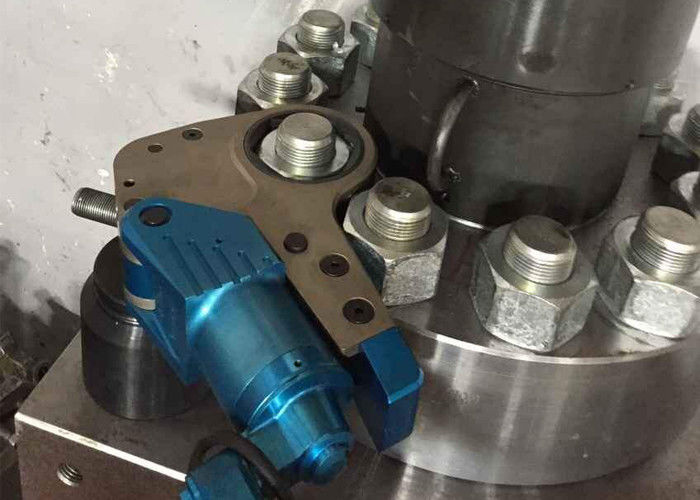

Actual Product Picture
