2" 1/2" Hexagon Handheld Hydraulic Tools Low Profile Torque Wrench Bolt Tools

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

2" 1/2" Hexagon Handheld Hydraulic Tools Low Profile Torque Wrench Bolt Tools

2" 1/2" Hexagon Handheld Hydraulic Tools Low Profile Torque Wrench Bolt Tools
2" 1/2" Hexagon Handheld Hydraulic Tools Low Profile Torque Wrench Bolt Tools

Large Image :  2" 1/2" Hexagon Handheld Hydraulic Tools Low Profile Torque Wrench Bolt Tools

Product Details:
Place of Origin: China
Brand Name: wellnit
Certification: ISO9001
Model Number: SHTW-25
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton
Delivery Time: within 7days after received 100% payment
Payment Terms: T/T
Supply Ability: 500sets/week
Detailed Product Description
Brand Name: Wellnit Model: SHTW-25
Torque: 3472-34725N.m Bolt Size: 48-100 M
Weight: 31KG Square Drive: 2-1/2"
High Light:

hydraulic torque wrench

,

hydraulic torque machine

2" 1/2" Hexagon Handheld Hydraulic Tools Low Profile Torque Wrench Bolt Tools



Bolt tools are used in various industries to assemble a variety of products, regardless of which industry is



applied, to ensure the reliability of the connection.



Fastener fastening



Our products can meet users' requirements for accuracy and tighten multiple bolts at the same time.



Hydraulic torque wrench torque tightening method is to use threads to tighten the nut to the support



surface, bolt screw by the pitch and elongation.



The bolt stretcher realizes the tension fastening method, so that the bolt is extended and the nut can be



screwed to the supporting surface without friction.



Connector separation



Nut breakers and a series of mechanical and hydraulic expanders for splicing connections are used for



the inspection, maintenance and disassembly of bolts and nuts.



2" 1/2" Hexagon Handheld Hydraulic Tools Low Profile Torque Wrench Bolt Tools 0



Product Features



I. Patented integrated body design, more sturdy and durable



II. Rotary-return mechanism design, never-jam mechanism.



III. Hands-free operation, making the use more safety.



IV. Slim nose radius and 360°×180° swivel hose connection allow easier positioning



    in confined space.



V. High repeatability, with accuracy±3%



VI. 360°reaction arm, makes the wrench get better supporting



VII. Standard working pressure: 700par.





Model





Torque



Bolt Size



Weight



Square Drive



SHTW-1





183-1837



16-36



2



3/4”



SHTW-3





451-4512



22-48



4



1”



SHTW-5





752-7528



27-56



7



1-1/2”



SHTW-8





1078-10780



30-64



9.1



1-1/2”



SHTW-10





1551-15516



36-72



13.1



1-1/2”



SHTW-15





2063-20627



39-80



21



2-1/2”



SHTW-20





2666-26664



42-90



25



2-1/2”



SHTW-25





3472-34725



48-100



31



2-1/2”



SHTW-35





4866-48666



64-120



45



2-1/2”





Machine Parameter





Model





Torque N.m



Bolt Size M



Weight Kg



Square Drive





SHTW-25



3472-34725



48-100



31



2-1/2”





1. The fuselage is made of high-strength and ultra-light aerospace materials (Al-Ti alloy) to strengthen the



strength and toughness of the fuselage.



2. adopt precision ratchet and power machinery, high precision driving shaft hydraulic wrench, precision



up to + 3%.



3. Fast drive shaft hydraulic wrench, the first time to achieve full automatic control, continuous unlocking,



speed is twice the same product.



4. 360 degree X180 degrees rotary tubing connection, no space limitation.



5. simple driving shaft spanner, fully automatic control, single person operation. The 360 degree fine-



tuning counter arm adopts trigger lock. The accurate check pawl device overcomes the wrench reversal,



improves the pretightening accuracy and can release quickly.



6. It is suitable for bolts which are difficult to find the supporting point of the bolt force. A wrench can be



used to unlock bolts of various specifications. A pump can drive multiple wrenches to unlock



simultaneously.

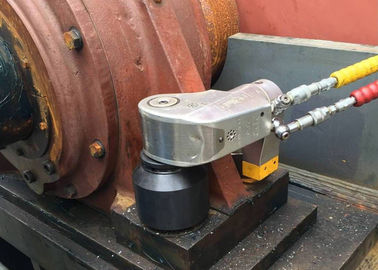

Actual Process Picture



2" 1/2" Hexagon Handheld Hydraulic Tools Low Profile Torque Wrench Bolt Tools 1
