Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Type: | Automatic | Frequency: | 50HZ / 60HZ |
|---|---|---|---|
| Speed: | 24Rpm | Motor: | 750W |
| For Pipes: | Dia.20-150mm | Capacity: | 2"-12" |
| High Light: | pipe groover machine,tube grooving machine |
||

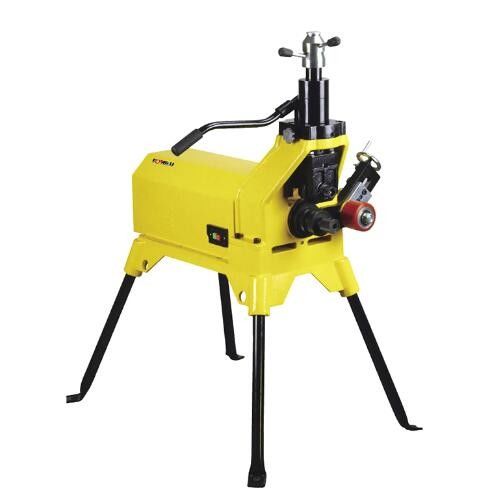

2" - 12" Hydraulic Electric Pipe Grooving Machine With Heavy Duty Switch
Product Description
The Model WT-358 hydraulic roll groover, powered by 750W
induction motor, is capable of grooving up to 12" Sch 10 and
6" Sch 40 standard wall pipes. "All in one" design of drive
shaft for convenient replacement changing. It comes
with standard support legs, the unit can be set up quickly.
The induction motor ensures steady and quiet working.
Technical Specifications
Motor: 750W induction, 50/60Hz
Switch: ON/OFF heavy duty switch.
Spindle Speed: 24 RPM
Capacity: 2"-12" Sch. 10 steel, stainless steel.
2"-6" Sch. 10/ 40 steel, stainless steel.
N.W: 120 kg
Standard Equipment
One 2"-6" Schedule 10/40 Roll Set for steel.
One 8"-12" Schedule 10 Roll Set for steel.
For 3/4" to 6" (19 mm to 150 mm) pipes in diameter.
Equipped with 750 W motor , 220 V -50 Hz / 110 V - 60 Hz.
No load speed of 460 RPM.
Max working length: 50 m with 16 mm in dia. cable / 60 m with 22 mm in dia. cable.
Factory Direct with complete tool sets
Main machine
Cable holder with 5pcs*16 mm *2.3 m cables
Cable holder with 5pcs*22 mm*2.3 m cables
4pcs of 16 mm cutters : straight auger, bulb auger, cross-blade cutter and grease cutter
4pcs of 22 mm cutters : straight auger, bulb auger, funnel auger and spade head cutter
1pc of tool case
1 pc of φ4 key and 1pc of φ5 key
A pair of protection gloves
| Catalog No. | Model No. | Description | N.W(kg) |
| WT-358 | Hydraulic Roll Groover, 220V/50Hz | 80 | |
| WT-358 | Hydraulic Roll Groover, 220V/50Hz | 80 | |
| Accessories | |||
| Roll Set for 1 1/4"-1 1/2" | |||
| Roll Set for 2"-6" | |||
| Pipe support stand | 1 | ||
About OEM
OEM is availible, but we need a certain demand quantity. We can make the LOGO sticker/lables or make the casting as your request.
Warranty
1) How long is the warranty? ----- We provide 1 year warranty for the main parts of our product. Like, gearbox, motor, cast body etc.
The quick worn parts are not included. Like the dies, carbon brushes, cutting wheels, sealing rings etc.
2) What should I do if my tool is broken? ----- Inthe warranty period, we will make compensation free for all non-human factors damage. Once your tool damaged in working, please take photos at the sight, and we will deliver the spare parts to you immediately. If your tool was broken by human factors, or outside the warranty period, we can also send you the spare parts for your replacement, but need to charge.
3) What should I do when I received a damaged goods? ----- If you found there is any part damaged in the delivery, please take photos once your open the package, we will send you a new one for Half-Price.
Lead Time
1) If you order samples, we will finish the goods within 7 working days, and prepare to deliver to you.
2) If your quantity is large, don't worry, we will try our best to finish the production ASAP. It will be within
20~35 days.
About Discount
Discount will be based on large quantity. Please consult us, we will tell you the corresponding quantity discount.
