Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Power: | 1600W | Rotating Speed: | 150-250R/Min |
|---|---|---|---|
| Voltage: | 110/220V | Frequency: | 50/60Hz |
| High Light: | Multifunction Angle Pipe Cutting Machine,OD 120mm Pipe Cutting Machine,250R/Min Rotating Pipe Cutting Machine |
||

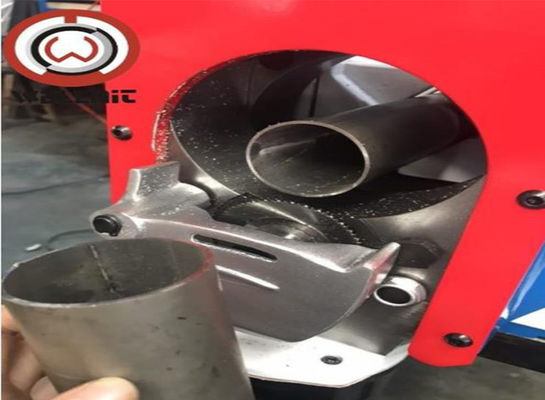

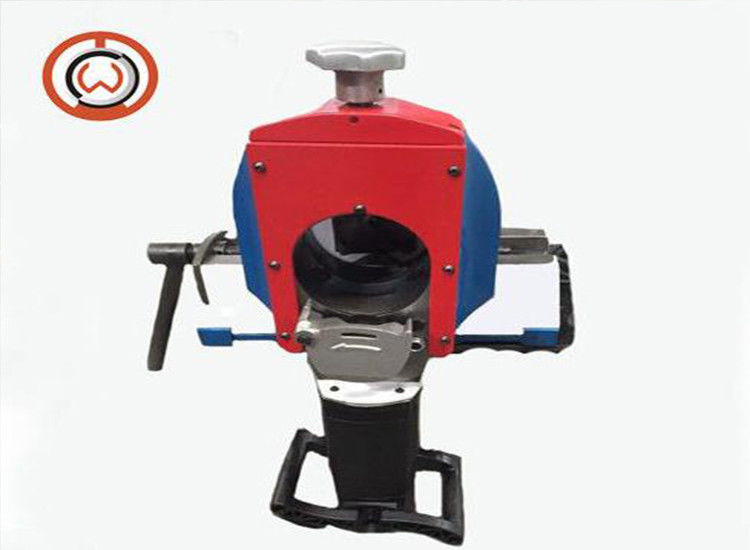

Stainless Steel Pipe Multi-Function Angle Cutting Machine Manual Steel Pipe Cutting Machine No Burr Pipe Cutting Machine
Features
1. Completely cold processed, no sparks, and will not affect the material
2. The automatic positioning the tube center, concentricity and perpendicularity are no manual adjustments
3. High processing precision, good surface quality, no burrs
4. For tubes of different materials, processing speed is adjustable level 1-6
5. The motor has large power and high efficiency
6. Cobalt-containing saw-shaped circular blade, wear-resistant, small consumables
7. The processing speed is fast, and the cutting can be completed in a few seconds
8. Suitable for thin-walled pipes, especially sanitary stainless steel pipes
Technical Parameters
model H120 H182 H230 H325
| Outer diameter | 19-120mm | 85-182mm | 150-230mm | 215-325mm |
| Wall thickness | 1-7mm | 2-10mm | 2-10mm | 2-10mm |
| Power and speed |
1600W 150-250 |
1600W 150-250 |
1600W 150-250 |
1600W 150-250 |
| Voltage frequency |
110/220V 50/60Hz |
110/220V 50/60Hz |
110/220V 50/60Hz |
110/220V 50/60Hz |
| Scope of application | Mainly used for stainless steel pipes, carbon steel pipes, copper pipes, aluminum steel and other alloy steel pipes | |||
