Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Material: | CS | Beveling Mode:: | Cold Beveling And Chamferring |
|---|---|---|---|
| Application:: | Stainless Steel, Carbon Steel, Aluminum Alloy Pipe | Power:: | 220-240V 1 PH 50-60Hz |
| Driven Type:: | Electric, Pneumatic | Usage:: | Welding Preperation |
| Highlight: | pipe grooving tool,tube grooving machine |
||
ISE / ISP stainless steel tube polishing Machine

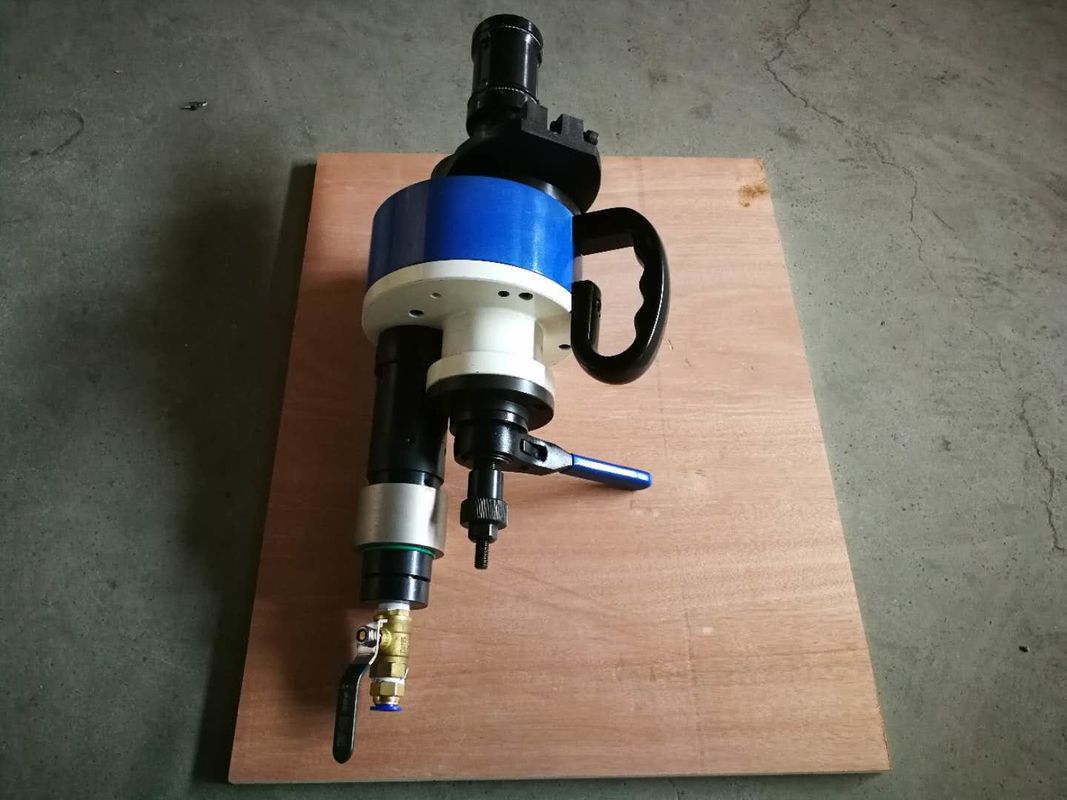

ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.
Below Technical Specifications for Electry Type Steel Pipe Beveling Machines for Steel Pipe Beveling :
| Model | Working Range (ID-OD) | Wall Thickness | Rotation Speed | |
| ISE-30 | Φ18-30 | 1/2''-3/4'' | ≤15 | 50r/min |
| ISE--80 | Φ28-89 | 1''-3'' | ≤15 | 55r/min |
| ISE--120 | Φ40-120 | 1 1/4''-4'' | ≤15 | 30r/min |
| ISE--159 | Φ65-159 | 2 1/2''-5'' | ≤20 | 35r/min |
| ISE--252-1 | Φ80-273 | 3''-10'' | ≤20 | 16r/min |
| ISE--252-2 | Φ80-273 | ≤75 | 16r/min | |
| ISE--352-1 | Φ150-356 | 6''-14'' | ≤20 | 14r/min |
| ISE--352-2 | Φ150-356 | ≤75 | 14r/min | |
| ISE--426-1 | Φ273-426 | 10''-16'' | ≤20 | 12r/min |
| ISE--426-2 | Φ273-426 | ≤75 | 12r/min | |
| ISE--630-1 | Φ300-630 | 12''-24'' | ≤20 | 10r/min |
| ISE--630-2 | Φ300-630 | ≤75 | 10r/min | |
| ISE--850-1 | Φ490-850 | 24''-34'' | ≤20 | 9r/min |
| ISE--850-2 | Φ490-850 | ≤75 | 9r/min | |
Below Technical Specifications for Pneumatic Type stainless steel tube polishing Machine :
| Model | Working Range (ID-OD) | Wall Thickness | Rotation Speed | Air pressure | Air Consumption | |
| ISP-30 | Φ18-30 | 1/2''-3/4'' | ≤15 | 60r/min | 0.6MPa | 900 L/min |
| ISP--80 | Φ28-89 | 1''-3'' | ≤15 | 50r/min | 0.6MPa | 900 L/min |
| ISP--120 | Φ40-120 | 1 1/4''-4'' | ≤15 | 38r/min | 0.6MPa | 900 L/min |
| ISP--159 | Φ65-159 | 2 1/2''-5'' | ≤20 | 35r/min | 0.6MPa | 1000 L/min |
| ISP--252-1 | Φ80-273 | 3''-10'' | ≤20 | 16r/min | 0.6MPa | 1000 L/min |
| ISP--252-2 | Φ80-273 | ≤75 | 16r/min | 0.6MPa | 1000 L/min | |
| ISP--352-1 | Φ150-356 | 6''-14'' | ≤20 | 14r/min | 0.6MPa | 1200 L/min |
| ISP--352-2 | Φ150-356 | ≤75 | 14r/min | 0.6MPa | 1200 L/min | |
| ISP--426-1 | Φ273-426 | 10''-16'' | ≤20 | 12r/min | 0.7MPa | 1500 L/min |
| ISP--426-2 | Φ273-426 | ≤75 | 12r/min | 0.7MPa | 1500 L/min | |
| ISP--630-1 | Φ300-630 | 12''-24'' | ≤20 | 10r/min | 0.7MPa | 1500 L/min |
| ISP--630-2 | Φ300-630 | ≤75 | 10r/min | 0.7MPa | 1500 L/min | |
| ISP--850-1 | Φ490-850 | 24''-34'' | ≤20 | 9r/min | 0.7MPa | 1500 L/min |
| ISP--850-2 | Φ490-850 | ≤75 | 9r/min | 0.7MPa | 1500 L/min |
|
Our Machine operation types for your choice as bellowing:
OCE :Electric
OCP :Pneumatic
OCH : hydraulic station
OCM :driven is Metabo
