High Durability Handheld Hydraulic Tools Square Drive Torque Wrench Anti Corrosion

High Durability Handheld Hydraulic Tools Square Drive Torque Wrench Anti Corrosion
High Durability Handheld Hydraulic Tools Square Drive Torque Wrench Anti Corrosion

Large Image :  High Durability Handheld Hydraulic Tools Square Drive Torque Wrench Anti Corrosion

Product Details:
Place of Origin: China
Brand Name: wellnit
Certification: ISO9001
Model Number: SHTW-15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton
Delivery Time: within 7days after received 100% payment
Payment Terms: T/T
Supply Ability: 500sets/week
Detailed Product Description
Brand Name: Wellnit Model: SHTW-15
Torque: 2063-20627 N.m Bolt Size: 39-80 M
Weight: 21 KG Square Drive: 2-1/2"
High Light:

hyd torque wrench

,

hydraulic torque machine

High Durability Handheld Hydraulic Tools Square Drive Torque Wrench Anti Corrosion





Product Features



1. Push button square drive release to quickly reverse the square drive for tightening and loosening.



2. Fast operation due to the large nut rotation per wrench cycle and rapid return stroke,high efficiency.



3. All wrenches are nickel-plated for excellent corrosion protection and improved durability in harsh



environments.



4. Constant toque output provides high accuracy across the full stroke.



5. Fast operation due to the large nut rotation per wrench cycle and rapid return stroke.



High Durability Handheld Hydraulic Tools Square Drive Torque Wrench Anti Corrosion 0





Model





Torque



Bolt Size



Weight



Square Drive



SHTW-1





183-1837



16-36



2



3/4”



SHTW-3





451-4512



22-48



4



1”



SHTW-5





752-7528



27-56



7



1-1/2”



SHTW-8





1078-10780



30-64



9.1



1-1/2”



SHTW-10





1551-15516



36-72



13.1



1-1/2”



SHTW-15





2063-20627



39-80



21



2-1/2”



SHTW-20





2666-26664



42-90



25



2-1/2”



SHTW-25





3472-34725



48-100



31



2-1/2”



SHTW-35





4866-48666



64-120



45



2-1/2”


Machine Parameter




Model




Torque N.m


Bolt Size M


Weight Kg


Square Drive




SHTW-15




2063-20627



 39-80


21


2-1/2"

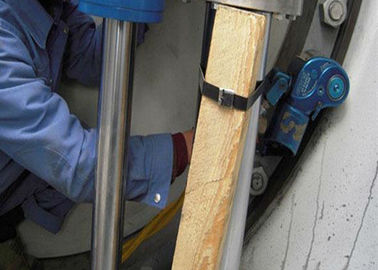

Actual Process Picture


High Durability Handheld Hydraulic Tools Square Drive Torque Wrench Anti Corrosion 1



Driven wrench dedicated sleeve




1. chrome-molybdenym steel high strength sleeve

High Durability Handheld Hydraulic Tools Square Drive Torque Wrench Anti Corrosion 2


2. high strength chromium molybdenum alloy steel



manufacture



3. adopt standard heat treatment technology,safe and



reliable,durable.


4. the standard is metric sleeve size,which can be



customized to the imperial sleeve or all kinds of



non-stanard sleeve.



Operation procedure:


1 Wire-controlled switch button function: press (RUN, button, cylinder propulsion; release the button,



cylinder reset automatically. Press (STOP, button) to stop the oil pump.


2 Before starting the hydraulic pump, first open (loosening, pressure regulating valve, and then open the



power supply (ON, check whether the hydraulic pump is running normally; then point the wire-controlled



button several times, running for several minutes, the pressure will be adjusted to the preset value



required. The rated pressure is 70Mpa.


3 When adjusting the pressure, press the wire-controlled button, when the wrench "click" sound is heard,



the quick release rod jumps, the wrench in place to stop turning, the pressure gauge rises rapidly from 0,



the other hand slowly upward adjusting the pressure regulating valve, and can be locked with locking



nuts.


4 Empty operation, put the hydraulic wrench on the ground, press (RUN, button, the wrench began to



rotate, when heard the wrench "click", then the wrench in place to stop turning; at this time release the



button, the wrench automatically reset, when heard the wrench "click" again, the reset is completed. That



is: RUN - push - Bang - release - reset - bang. Repeat several work cycles to see if the spanner is rotating



without exception, the wrench can be placed on the nut.


5 Loosen the nut: Pump the hydraulic pressure to the highest (70Mpa,, confirm the wrench to turn to the



direction of loosening, find the reaction fulcrum, depend on stability, repeated cylinder advance and



retreat work cycle. If it can not be removed, rust removal measures will be taken. If the nut can not be



removed, a larger hydraulic wrench will be used.


6 Lock the nut: check the torque corresponding table to determine the pressure setting of the hydraulic



pump, confirm the wrench turning to the lock direction, find the reaction fulcrum, depend on stability,



repeatedly carry out the cylinder's working cycle until the nut does not move.


7 when the hydraulic torque wrench stops, it should turn off the power in time.


8 Cut off the power supply after work, remove the residual pressure of the system according to the



pressure relief valve, open the pressure regulating valve completely, and then remove the tubing.


9 the wrench must be unloaded when transporting.
