Light weight Portable Cold Pipe Grooving Machine , Pipe Groover Carbon Steel

Light weight Portable Cold Pipe Grooving Machine , Pipe Groover Carbon Steel
Light weight Portable Cold Pipe Grooving Machine , Pipe Groover Carbon Steel Light weight Portable Cold Pipe Grooving Machine , Pipe Groover Carbon Steel Light weight Portable Cold Pipe Grooving Machine , Pipe Groover Carbon Steel

Large Image :  Light weight Portable Cold Pipe Grooving Machine , Pipe Groover Carbon Steel

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO 9001
Model Number: ISE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $480
Packaging Details: plywood
Delivery Time: within 2days after received 100% payment
Payment Terms: T/T
Supply Ability: 60 Sets per month
Detailed Product Description
Working Range (I.D): 2/3"-34" (18-830mm) Power Supply: 240V Single Phase 2000W
Wall Thickness: Less Than 20mm Driven: Electric , Pneumatic , Metabo
High Light:

pipe grooving tool

,

tube grooving machine



lightweight Portable pipe cold groove machine carbon steel



The main of performance

This series of products is specially designed for metal pipe.It is internal mounted and it has a small working radius, which is suitable for a narrow working situation.The machine is manual operated (install the machine put in the open end of pipe)and the machine feed by rotating the ratchet handle (bevel angle by tool angle). The operation is simple and the processing speed is fastly. The grooved surface after processing is smoothly. Suitable for heat exchangers, pipes, boilers, etc.



The function of Product

1. Compact structure,lightweight,easy to carry out.
2. Easy to operation ,self-centering.
3. Bevel surface smoothly,Meet welding requirements.
4. Cold beveling,won’t influence the material of pipe,no spark.
5. Bevel angle can be customization.
6. Process carbon steel,stainless steel,alloy etc with U,V,J compound bevel.

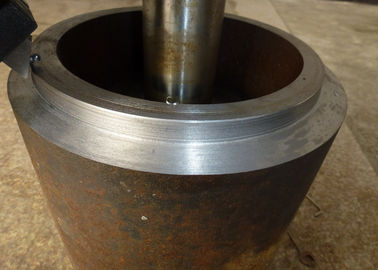

Light weight Portable Cold Pipe Grooving Machine , Pipe Groover Carbon Steel 0



The specification of product

Driven Model Working Range(I.D-O.D) Wall Thickness Rotation Speed
  30 18-30 2/3"-3/4" <=15mm 50r/min
  80 28-89 1"-3" <=15mm 55r/min
ISE 120 40-120 11/4"-4" <=15mm 30r/min
Electric 159 65-159 21/2"-5" <=20mm 35r/min
  252-1 80-273 3"-10" <=20mm 16r/min
  352-1 150-356 6"-14" <=20mm 14r/min
ISP 426-1 273-426 10"-16" <=20mm 12r/min
Pneumatic 630-1 300-630 12"-24" <=20mm 10r/min
  850-1 600-850 24"-34" <=20mm 9r/min
  252-2 80-273 3"-10" <=75mm 16r/min
ISM 352-2 150-356 6"-14" <=75mm 14r/min
Metabo 426-2 273-426 10"-16" <=75mm 12r/min
  630-2 300-630 12"-24" <=75mm 10r/min
  850-2 600-850 24"-34" <=75mm 9r/min
Note:Non-Standard Machines are available according to customer's requirement.



ISE mean that driven is Electric



ISP mean that driven is Pneumatic

Pnuematic driven need meet air requirements.

Power supply:0.6-0.8MPa

Air consumption:650-1000L/Min



ISM mean that driven is Metabo(Germany import with overload protect)



Different Model that Working Range is different.

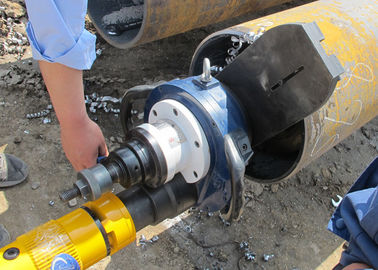

The Opeation general steps as follows:

1.Measure pipe size(I.D),choose suitable expand block and install.

2.put machine in the pipe,fixed the machine

3.install the tools

4.start to process



Light weight Portable Cold Pipe Grooving Machine , Pipe Groover Carbon Steel 1

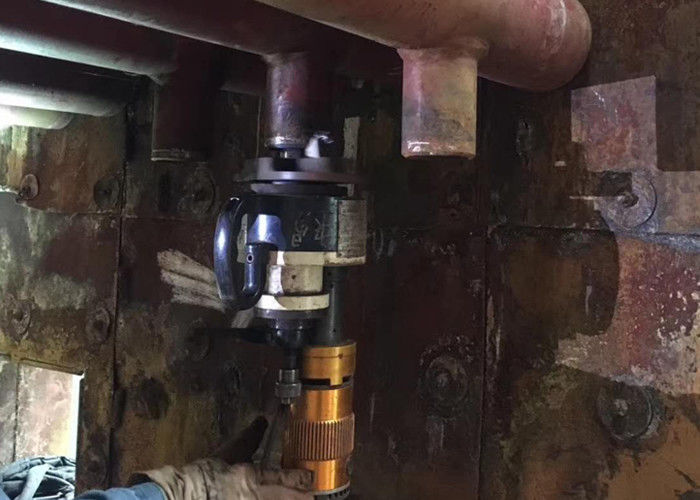

These products are suitable for different pipes,

as you shown above picture,this is the tee of pipe.



The expansion parts of machine is 6 points stressed.

As long as the force points can be properly tightened

Different types of tubes can be process.



We are manufacturers, we have professional engineers,

you provide processing requirements and drawings,

we will customize products for you to meet your needs.

We also can video with you,let our engineers teach you how to use machine.



Before place order ,please provide more details about your pipe,

We will recommend suitable machine to you.

1.PIPE SIZE (I.D):

2.PIPE THICKNESS:

3.PIPE MATERIAL:

4.DRIVEN:
