Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler

Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler
Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler

Large Image :  Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO9001 ; CE
Model Number: ISE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood Box
Delivery Time: within 7days
Payment Terms: T/T
Supply Ability: 30 sets / month
Detailed Product Description
Condition: New Warranty: One Year
Certification: ISO9001 ; CE Processing Range: 1" To 56"
Pipe Wallthickness: Less Than 30mm Name: Electric Pipe Beveling Machine
High Light:

electric pipe beveler

,

portable pipe beveler

Portable Pipe Beveling Machine ID Mounted Tube End chamfer beveler

​Performace of Machine

A complete range of pipe beveling machines for mechanical weld preparation and orbital welding makes pipe beveling job easy to be done on-site or in the workshop. The pipe beveling machine is fixed on the pipe with an inside or outside clamping mechanism. The pipe beveling machine is operated by one worker, who gives a manual feed to the pipe beveling machine with a lever, ratchet or turnstile. Two or more cutters are fixed in the blade holder. The speed of pipe beveling is adjustable and depends on material, wall thickness and diameter.

In general for weld preparation of heavy wall pipes the weld edge end has to be beveled in 0°, 30°, 37,5 ° or j-shape. Mostly companies use a heavy grinder for this work. This takes a long time, is not precise and causes terrible work conditions for the worker. Dust, vibrations and noise cause worker diseases. Low quality of weld preparation reduces the quality of welding junction and long working time increase production costs.

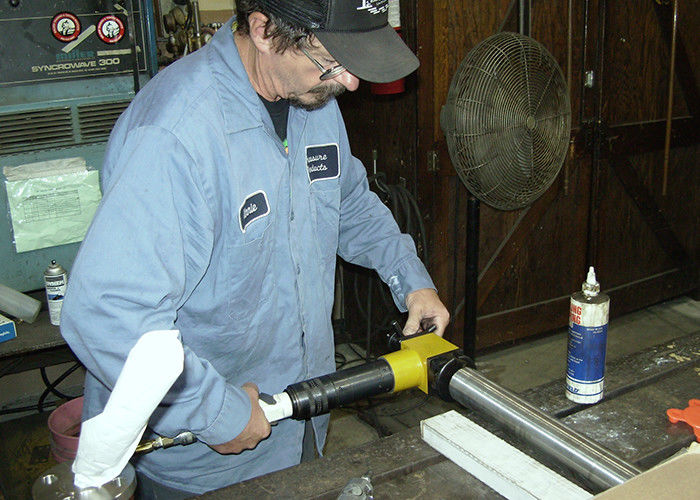

Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler 0

All pipe beveling machines are available with electrical or pneumatic drive. Due to aluminum housing the machines have a very low weight, which makes beveling work of heavy wall pipes with high wall-thickness on-site a lot more convenient. A large application range and special pipe bevel tools for bevel applications are available. Pipe end preparation is also necessary for orbital welding to achieve the best pipe weld edge preparations with outside beveling and inside beveling.

The Beveling And Chamfering Machines that is offered by us is light in weight and powerful machine. It is available with electric as well as pneumatic motor. It is used for chamfering, beveling, and weld preparation. It is so compact, that it is very useful for various jobs in respective access areas. This light in weight and easy in handling make it very useful.

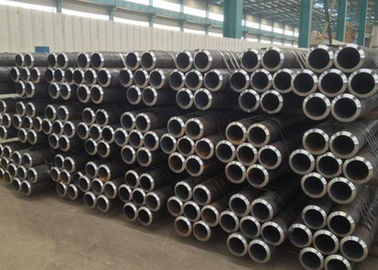

Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler 1

Features:

  • Drive: Electric, Pneumatic.

  • Enlarge tube end beveling and chamfering machines' interchangeability of locking jaws suits wide range of diameters.

  • Portable fixture designed to self aligns and amount on tubes for fast tube end facing & chamfering in constrained spaces.

  • It allows the operator to face the tube end to maintain uniform projection of tube in boiler drum.

  • Available in different models to cover tube size from 18mm to 820mm ID.

Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler 2

Specification:

Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler 3

Tools:

Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler 4

Bevel Type:

Sample Portable Pipe Beveling Machine ID Mounted Tube End Chamfer Beveler 5
