Feed Automatical Electric Pipe Beveling Machine , Cold Cutting Chamfering Machine

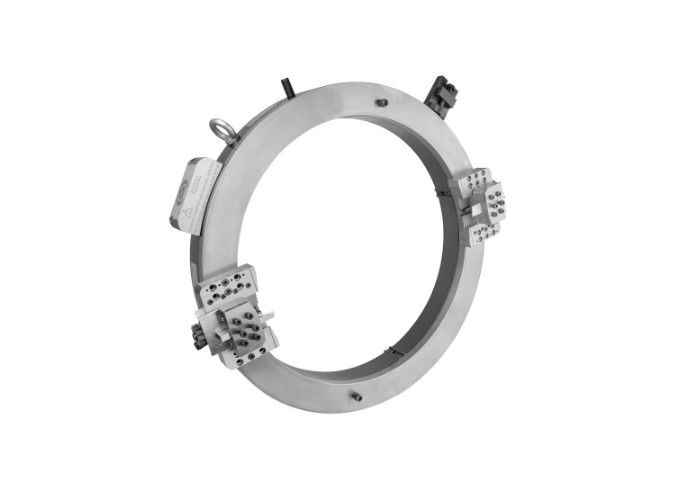

Feed Automatical OD-Mounted Clamshell Cold Cutting Chamfering Machine Split Frame Portable

Machine Description :

• Pipe Outside Mounted series machine is ideal for all types of pipe cutting, beveling and end preparation.
• The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping.
• The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe,
• Working Ranging from 3/4" to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.

Advantages:

• Cold Cutting and Beveling improves safety
• Cutting and Beveling simultaneous
• Split Frame: easy mounted on pipeline
• Tools feed automatically
• Fast, Precision, On-site Beveling
• Minimal Axial and Radial clearance
• Light weight and compact design
• Easy set-up & Operation
• Electric or Pneumatic or Hydraulic driven
• Machining heavy-wall pipe from 3/4” up to 56”

Different Types operation machine:

Electric,Penumatic ,Hydraulic power pack,CNC

Electric type operation machine:

Power supply:

220-240V,1PH 50/60Hz

1.5-2KW

Penumatic  type operation machine:

Power supply:

0.8-1.0Mpa

1000-2000L/min

Hydraulic  type operation machine:

Power supply:

380V 3PH 50-60HZ,

10Mpa,25L/Min

CNC type operation machine:

Power supply:

220-380V,50-60HZ

16NM,0-30R/MIN

1.5-4KW

Main Characteristic:

• Powerful drive, high efficiency
• Stable performance
• Low noise adjustable speed
• Ideal for heavy wall and large size pipe
• Lower axial and radial clearance
• Cold cutting and beveling , No spark
• Easy to set up , Robust operation
• Automatic feed, high efficiency
• Can sperate to two half , it's easy for pipe when two end can't open
• Process carbon steel , stainless steel , aluminum alloy , alloy steel etc

Tech date sheet:

OD-Mounted Hydraulie Type :


COMPANY INTRODUCTION:

Zhejiang Wellnit Mechanical Technology Co.,Ltd (Original:Wenzhou Huakai Co.,Ltd)is a professional manufacture and exporter that is concerned with the design,development and production of pipe cutting and beveling machine,portable plate beveling machine.

we have recieved ISO9001:2008,CE certificates etc.

The products include :

1. O.D. mounted light & heavy-duty pipe cutting and beveling machine,
2. I.D. mounted pipe beveling machine,
3. portable plate beveling machine.
4.  flange facing machines.
5. LINE-boring
6. Hot gac cutting machine
7. Plate chamfering machine

We are dedicate to continuing the spirit of innovation , manufacturing excellence, enthusiastic work force and the superb after sale service ,we are confident our future will be more and more successful.

To be honest, pioneer and enterprising, seek for truth and innovation" is our credo.

And "Your satisfaction is our great success"

Machine on site:

ORDER GUIDE

Please provide more details about your pipe:

• Pipe size (Outside Diameter)
• Pipe thickness
• Pipe material
• Machine body: Steel or Aluminum Alloy
• Driven: Electric , Pnuematic , Hydraulic , Servo Motor
• Bevel angle
• Bevel type
• Drawing

We will recommend suitable machine to you!
