Product Details:
Payment & Shipping Terms:
|
| Operation Way: | Maual (I Type) ; Automatic (II Type) | Working Range (I.D): | 18-840mm |
|---|---|---|---|
| Function: | Inside Bevel ; Outside Bevel ; Tube Facing Etc | Bevel Angle: | Can Be Customized |
| Bevel Type: | V , U , X Etc | ||
| High Light: | Internal Mounted Pipe Beveling Machine,Pre Welding Pipe Beveling Machine,M2 Pipe Beveling Machine |
||
Pre-welding processing equipment portable internal mounted pipe beveling machine
Performance of products
This series products is Pre-welding processing equipment.Designed for pipes of different sizes and materials.Different Models Machine have different working range,different material pipe can choose different material beveling (cutting)tool. The tool material have M2 and M42.
This machine is internal Mounted machine.Working clearance is small,Suitable for narrow situtaion.Compact design,lightweight,easy to carry out.
The machine can process carbon steel,stainless steel,aluminum alloy etc.
Function of products
Specification of Products
| Model | Working Range (I.D) | Wall thickness | Rotation Speed |
| ISE-30 | 18-28mm | less than 15mm | 50r/min |
| ISE-80 | 28-76mm | less than 15mm | 55r/min |
| ISE-120 | 40-120mm | less than 15mm | 30r/min |
| ISE-159 | 65-159mm | less than 20mm | 35r/min |
| ISE-252-1 | 80-240mm | less than 20mm | 16r/min |
| ISE-352-1 | 150-330mm | less than 20mm | 14r/min |
| ISE-426-1 | 250-426mm | less than 20mm | 12r/min |
| ISE-630-1 | 300-600mm | less than 20mm | 10r/min |
| ISE-850-1 | 600-840mm | less than 20mm | 9r/min |
| ISE-252-2 | 80-240mm | less than 75mm | 16r/min |
| ISE-352-2 | 150-330mm | less than 75mm | 14r/min |
| ISE-426-2 | 250-426mm | less than 75mm | 12r/min |
| ISE-630-2 | 300-600mm | less than 75mm | 10r/min |
| ISE-850-2 | 600-840mm | less than 75mm | 9r/min |
Application Range
The machine widely used in the fields of petroleum , Chemical , natural gas ; Power supply construction ; boiler and nuclear power etc

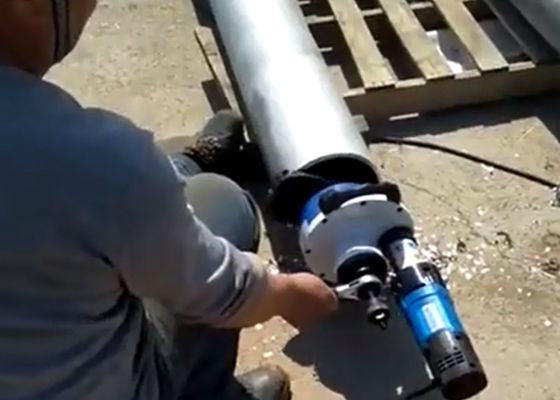

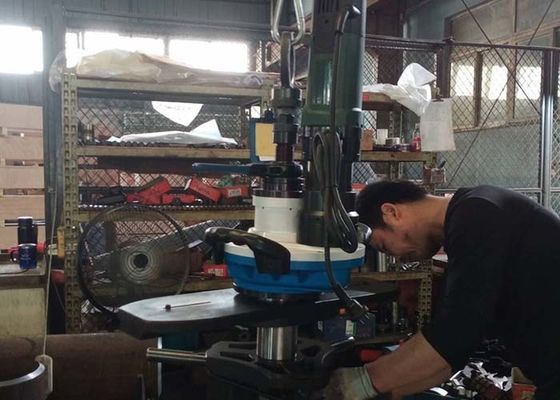

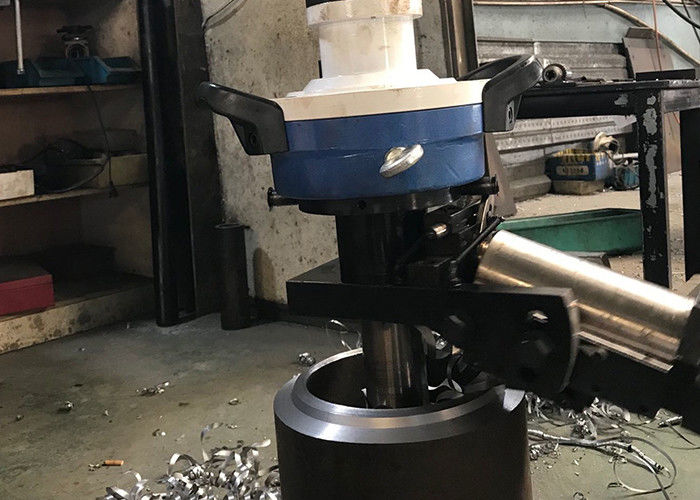

Product Show
Bevel Type
Outside bevel , Inside bevel , tube facing , counter boring etc
"V" Tybe ; "U" Tybe ; "X" Tybe etc
