Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Minimum Processing Range: | 50mm | Maximum Processing Range: | 610mm |
|---|---|---|---|
| Minimum Clamping Range: | 50mm | Maximum Clamping Range: | 508mm |
| Rotating Speed: | 0-42r/min | Rotation Angle Of Cutter Head: | +/- 30° |
| Tool Stroke: | 50mm | ||
| High Light: | Sealing Beveling Flange Facer Machine,42r/min Flange Facer Machine,Intermittent Cutting Flange Facer Machine |
||
Flange end face Flange surface water line sealing bevel flange inner hole outer circle processing sealing surface
Product introduction
WF-610 series flange end processing machine is a portable and efficient product. The machine adopts the method of internal clamping and clamping, which is fixed in the middle of the pipeline or flange, and can process the inner hole, outer circle and various forms of sealing surface (RF, RTJ, etc.) of the flange. The whole machine is modular in design, easy to assemble and disassemble, equipped with pre-loaded braking system, intermittent cutting, unlimited working position, high productivity, low noise, widely used in cast iron, alloy structural steel, stainless steel and other metal materials Flange sealing surface repair, flange surface repair and processing, etc.
The products are mainly used in nuclear power, shipbuilding, petrochemical, offshore oil, engineering machinery, metallurgy and many other fields.
Product parameter
| Processing outer diameter | 50-610mm |
| Processing range | 50-508mm |
| Cutter speed | 0-42r/min |
| Rotation angle of tool post | + / - 30⁰ |
| Power unit | Servo motor / pneumatic |
| Maximum processing range of RTJ seal bevel | 480mm |
| Giving speed | First gear 0.12mm Second gear 0.64mm |

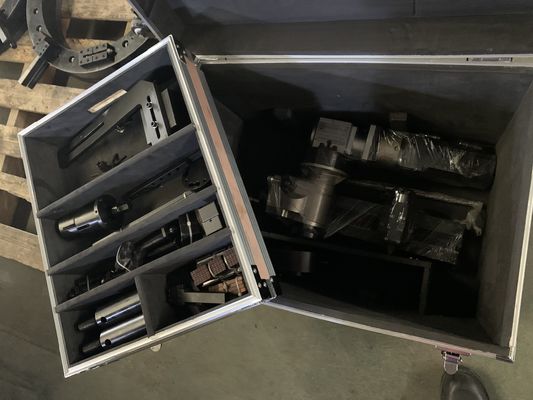

product details

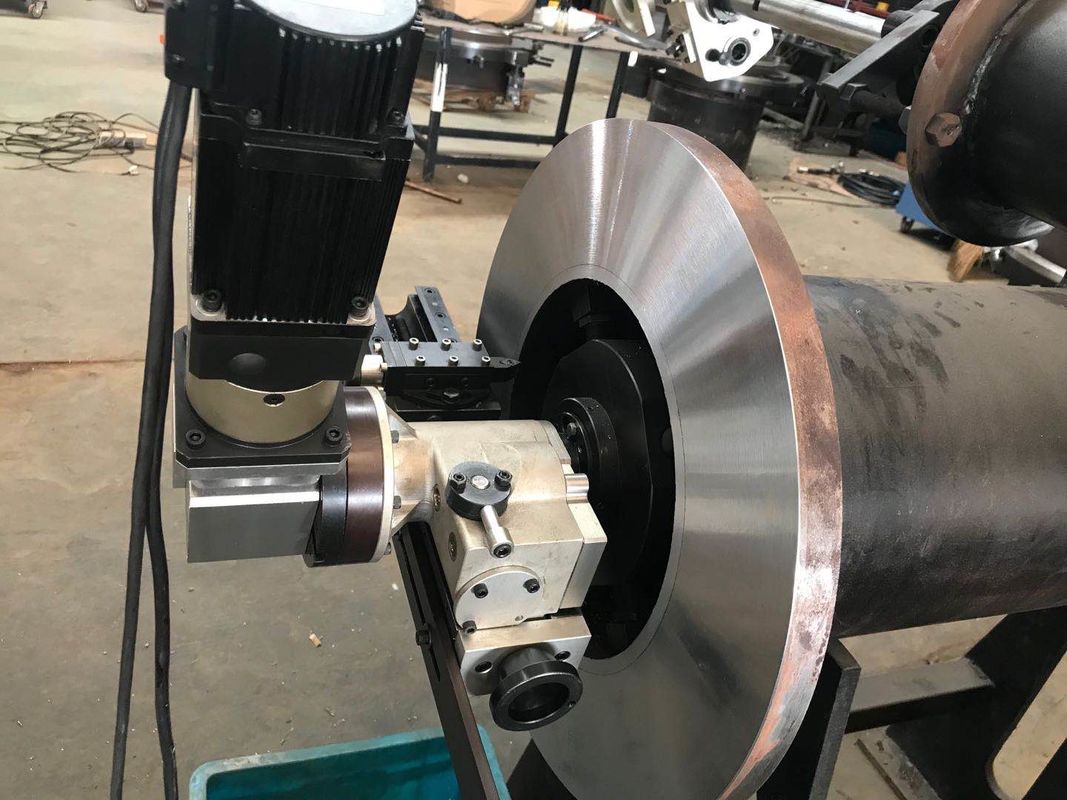

Engineering case
