Portable Boring Welding Machine Intelligent Cnc Boring Machine

Portable Boring Welding Machine Intelligent Cnc Boring Machine
Portable Boring Welding Machine Intelligent Cnc Boring Machine Portable Boring Welding Machine Intelligent Cnc Boring Machine Portable Boring Welding Machine Intelligent Cnc Boring Machine

Large Image :  Portable Boring Welding Machine Intelligent Cnc Boring Machine

Product Details:
Place of Origin: CHINA
Brand Name: Wellnit
Certification: ISO9001
Model Number: LBE-LBS-LBH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 10 sets a month
Detailed Product Description
Drive Way: Electric, Hydraulic, CNC Specification: 50/60/90/110/150/200/300
Boring Diameter: 55-1600mm Spindle Speed: 0-118r/min
Length Of Boring Bar: Customizable Warranty: 1 Year
High Light:

118r/min CNC Boring Welding Machine

,

Intelligent Cnc Boring Machine

,

Dia 1600mm Boring Welding Machine

  Portable boring machine can repair and process shaft pin holes, pipes, valves, and pump inner holes of construction machinery







Product performance



     The Line Boring is a high-efficiency series of machine tools. It is special equipment for processing deep holes in cylinders and hydraulic cylinders. This machine is equipped with a rotating structure design and automatic feeding device with high precision.The machine is widely. used in the processing and repair of excavators, loaders, crawler cranes and large marine cranes.



technical parameter



model Spec Boring Diameter Rotation Speed Length of boring bar

Electric-LBE






Hydraulic-LBH








CNC-LBS

50 55-300mm 0-118r/min

Standard boring bar length:2000mm

2500/3000/3500/4000/4500mm(customizable)

60 65-600mm 0-118r/min
90 100-800mm 0-78r/min
110 180-900mm 0-62r/min
150 220-1000mm 0-55r/min
200 380-1200mm 0-38r/min
300 460-1600mm 0-28r/min

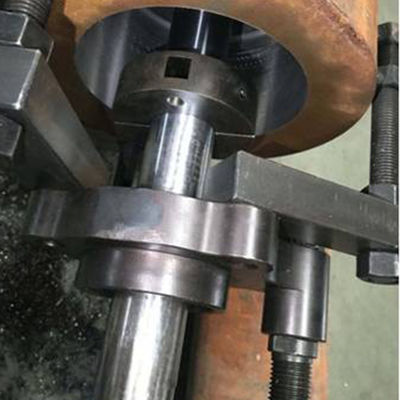

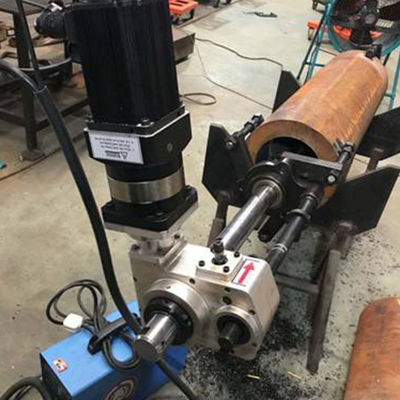

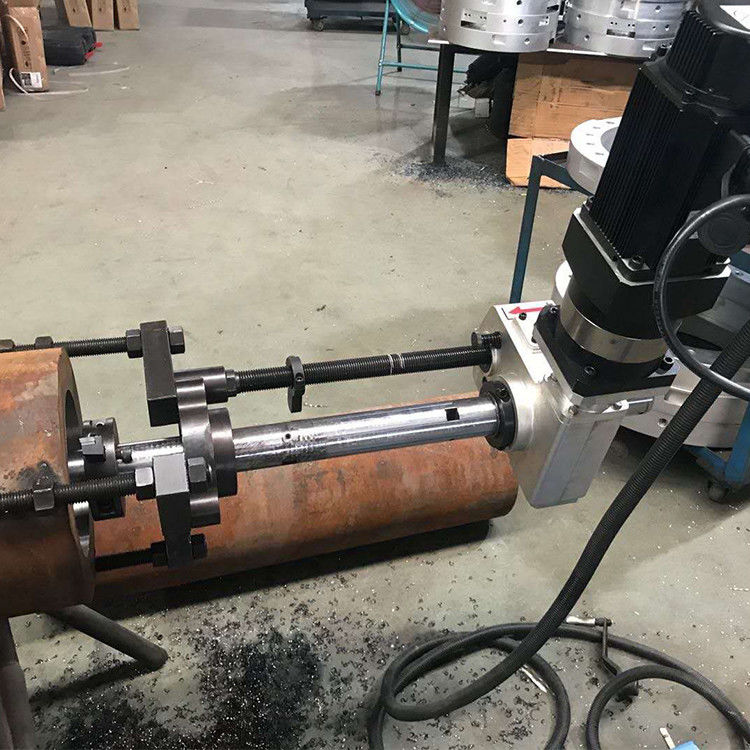

Products Show

Portable Boring Welding Machine Intelligent Cnc Boring Machine 0



Portable Boring Welding Machine Intelligent Cnc Boring Machine 1



Portable Boring Welding Machine Intelligent Cnc Boring Machine 2





Engineering case



Portable Boring Welding Machine Intelligent Cnc Boring Machine 3



Product packaging

Portable Boring Welding Machine Intelligent Cnc Boring Machine 4
