18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine

18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine
18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine
video play

Large Image :  18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISE/ISP/ISM
Payment & Shipping Terms:
Minimum Order Quantity: Negotiabl
Price: Negotiabl
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 500 sets for a mounth
Detailed Product Description
Machine Model: ISE/ISP/ISM Machine Specifications: Type I, Type II
Processing Range: 18-820mm Power Supply: 220-240V 1PH 50-60HZ
Motor Power: 1.2-2kw Warranty: 1 Year
High Light:

18mm Pipe Beveling Machine

,

2kw Round Pipe Electric Chamfering Machine

,

Automatic Feeding Pipe Beveling Machine



Internal expansion type beveling machine, specially for beveling, easy to carry.











Product performance



     This series of internal expansion installation beveling machine has the characteristics of simple and easy installation, light weight and convenient carrying. The chest expansion machine can be automatically positioned to the center when inserted into the inner diameter of the pipe. In addition to processing the bevel, chamfering, and cutting edge of the U and V welds of carbon steel, stainless steel, alloy steel and other materials, this machine can also process the raised face flange after welding. The bevel quality is good. , Fast speed, simple operation, optional and adjustable cutting amount.



   Type I machine: manual feed, automatic positioning of the center of the pipe, according to different pipe diameters, the speed of the motor can be adjusted, and the wall thickness of the bevel is ≤15-20.
  Type II machine: automatic feeding, automatic positioning of the center of the pipe, adjustable bevel angle (0-45 degrees), bevel wall thickness ≤75mm.







technical parameter



Model Spec  Machining inner diameter Wall  thickness Rotation Speed

Electric

ISE



Pneumatic

ISP





Metabo

ISM

30 φ18-28 ≤15mm 50r/min
80 φ28-76 ≤15mm 55r/min
120 φ40-120 ≤15mm 30r/min
159 φ65-159 ≤20mm 35r/min
252-1 φ80-240 ≤20mm 16r/min
352-1 φ150-330 ≤20mm 14r/min
426-1 φ250-426 ≤20mm 12r/min
630-1 φ300-600 ≤20mm 10r/min
850-1 φ600-820 ≤20mm 9r/min
  ISE-252T φ65-245 ≤20mm 16r/min
ISH-325 φ80-305 ≤20mm 16r/min









Model Spec Machining inner diameter Wall thickness Rotation Speed

Electric

ISE



Pneumatic

ISP





Metabo

ISM

252-2 φ80-240 ≤75mm 16r/min
352-2 φ150-330 ≤75mm 14r/min
426-2 φ250-426 ≤75mm 12r/min
630-2 φ300-600 ≤75mm 10r/min
850-2 φ600-820 ≤75mm 9r/min







Product features



18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine 0

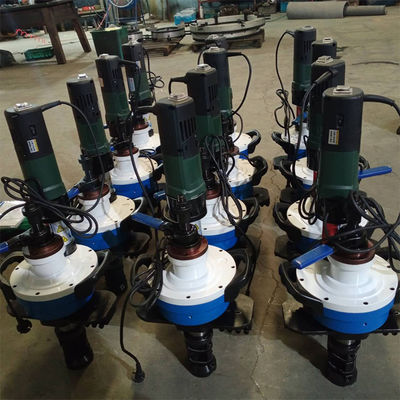

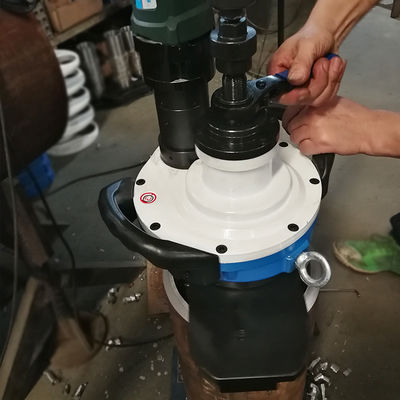

Products Show



18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine 1



18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine 2



18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine 3





Product features

The machine is easy to disassemble and assemble, compact structure, convenient to carry, self-centering, large cutting force, and high slope surface smoothness. Pneumatic: explosion-proof, safe performance. Electric: high power and fast efficiency.



18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine 4







The new motor is more durable, does not get hot, and has stable performance

18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine 5

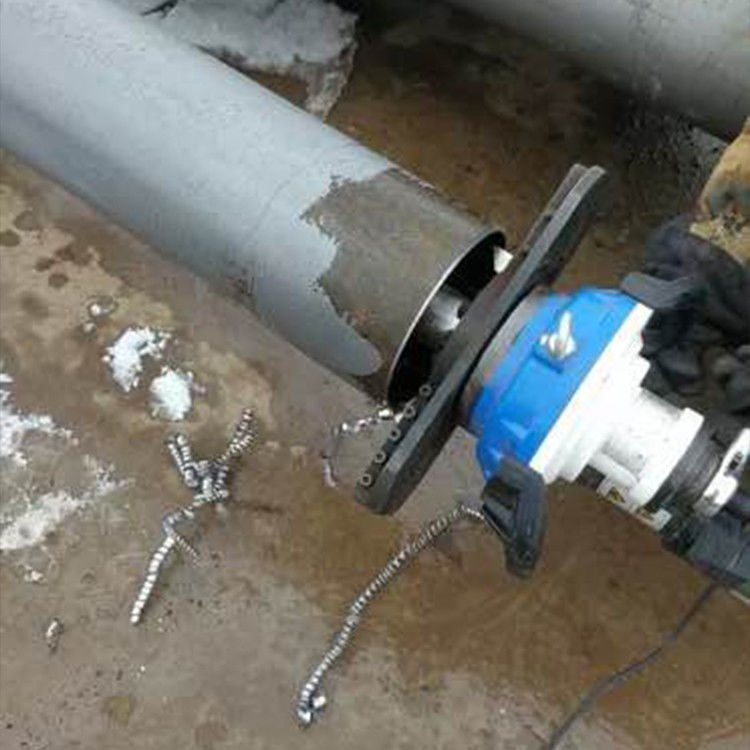

Engineering case



18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine 6



18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine 7



18mm Pipe Beveling Machine Round Pipe Electric Chamfering Machine 8
