Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Machine Model: | ISO-63C/76C/89C/114C | Processing Range: | φ28-114mm |
|---|---|---|---|
| Drive Mode: | Electric | Bevel Wall Thickness: | ≤12mm |
| Warranty: | 1 Year | Clamping Method: | :two-way Clamping |
| High Light: | Outer Clamp Pipe Beveling Machine,Chamfering Electric Pipe Beveling Machine,Automatic Feed Pipe Beveling Machine |
||
Boiler plant, power plant, pipe beveling machine, pipe beveling machine, external clamp type automatic beveling machine.
Product performance

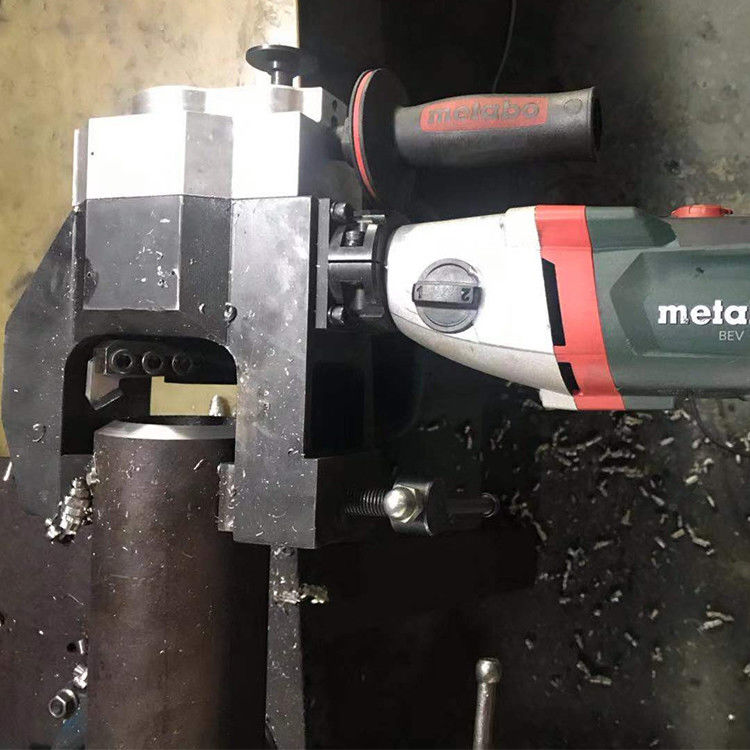

The external clamp beveling machine is designed for bevel processing of the end face of small diameter pipes in narrow workshops. Completely cold working method, external card positioning installation, automatic centering, easier operation. Automatically advance and retract the knife, high processing accuracy, good surface quality, and no burrs. The machine adopts imported motor, strong power, compact and light body, easy to carry. The machine is widely used in the bevel machining of single pipe and row pipe in industries such as water wall, boiler, superheater, reheater and so on.
Product parameter
| Model number | ISO-63C | ISO-76C | ISO-89C | ISO-114C |
| Processing range | φ28-63mm | φ42-76mm | φ63-89mm | φ76-114mm |
| Bevel wall thickness | ≤12mm | |||
| Clamping method | Two-way clamping | |||
| Accessory pad |
28.32.38.42.45. 51.54.57.60.63 |
42.45.51.54.57.60. 63.68.76 |
63.68.76.83.89 |
76.83.89.95.102. 108.114 |
Use industry
Metallurgy, shipbuilding, petrochemical and other industries pipe beveling early and on-site maintenance, thermal power auxiliary section, the steam engine boiler
On-site maintenance of the pipe valve part, can process carbon steel, stainless steel, alloy steel and other pipes
Product features
Easy to carry
Strong motor power
Smooth slope

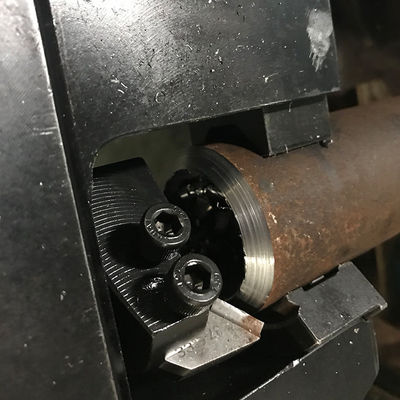

Before and after the bevel
Engineering case
Exhibition display
