Product Details:
Payment & Shipping Terms:
|
| Power Supply: | 220-240V 1PH 50-60Hz | Motor Power: | 1.2-2KW |
|---|---|---|---|
| Tool Material: | M2,M42 | Processing Inner Diameter Range: | φ18-φ820mm |
| Warranty: | 1 Year | Drive Way: | Electric， Pneumatic， Metabo |
| High Light: | Internal Expansion Pipe Beveling Machine,Electric Chamfering Pipe Beveling Machine,2KW Portable Pipe Beveling Machine |
||

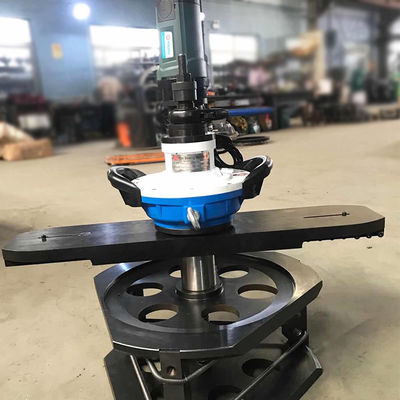

Internal expansion type pipe beveling machine chamfering machine
Product performance
The machine adopts cold working method, no sparks, does not affect the material, and automatically locates
the center of the pipe. The I type machine manually feeds, and the operation is simple. The II type machine can
automatically feed, and can process thick-walled pipes. The bevel angle can be adjusted (0 -45 degree). The
machine can process pipes made of carbon steel, stainless steel, alloy steel and other metal materials.
Product features
electric
220V high-performance motor drive, motor frequency 50HZ, current. 6A, motor power 1.2-2KW, motor power is strong, easy to install, fast and lightweight.
pneumatic
It adopts air motor drive, explosion-proof and other characteristics, and can work with 0.8-1.0Mpa air source. Air consumption is 1000-200L/min.
Metabo
Imported motor, with overload protection, stable performance, with two kinds of speed regulation.
technical parameter
| ISE(electric) ISP (pneumatic) ISM(Metabo) | |||
| Spec | Capacity(ID mm) | Wall thickness | Rotation Speed |
| 30 | φ18-28 | ≤15mm | 50r/min |
| 80 | φ28-76 | ≤15mm | 55r/min |
| 120 | φ40-120 | ≤15mm | 30r/min |
| 159 | φ65-159 | ≤20mm | 35r/min |
| 252-1 | φ80-240 | ≤20mm | 16r/min |
| 252-2 | φ80-240 | ≤75mm | 16r/min |
| 252T | φ65-245 | ≤20mm | 16r/min |
| 352-1 | φ150-330 | ≤20mm | 14r/min |
| 352-2 | φ150-330 | ≤75mm | 14r/min |
| 325 | φ80-305 | ≤20mm | 16r/min |
| 426-1 | φ250-426 | ≤20mm | 12r/min |
| 426-2 | φ250-426 | ≤75mm | 12r/min |
| 630-1 | φ300-600 | ≤20mm | 10r/min |
| 630-2 | φ300-600 | ≤75mm | 10r/min |
| 850-1 | φ600-820 | ≤20mm | 9r/min |
| 850-2 | φ600-820 | ≤75mm | 9r/min |

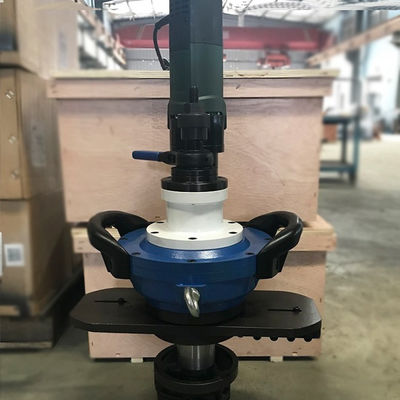

Products Show
Product detalis
Beveling machine blade, CS carbon steel M2 material, SS stainless steel M42 material.
The machine is equipped with handle, carry more convenient installation.
According to the pipe processing inner diameter range, add cushion blocks to easily bevel.
Ratchet handle to adjust advance and retreat knife.
The motor has strong power and does not get hot, and the pneumatic explosion-proof stability is high.
Bevel effect
Suitable for industry

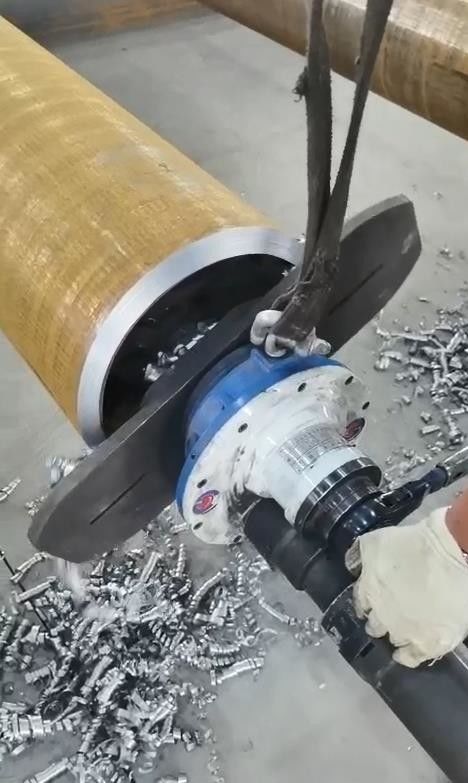

Engineering case
