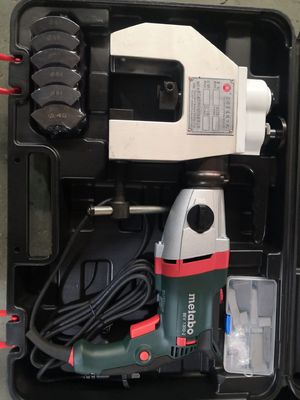

outside mounted narrow design pipe end beveling machine Metabo motor
machine introduce
this series machine special design for boiler pipe plate , Pipe grooves for radiators, thermal power plants, water walls and other professional equipment or on-site maintenance and batch processing.
machine use aluminum alloy body , light light , easy to carry , equip with german metabo motor , have overload protect , rotation speed can be adjust (1 grade to 6 grade) , small working raduis, suitable for Power plant Calandria,special design for narrow working space.
machine specification
| Model | Working Range | Wall thickness | Accessory pad |
| ISO-63C | 28-63mm | ≤12mm | 28,32,38,42,45,51,54,57,60,63 |
| ISO-76C | 42-76mm | ≤12mm | 42,45,51,54,57,60,63,68,76 |
| ISO-89C | 63-89mm | ≤12mm | 63,68,76,83,89 |
| ISO-114C | 76-114mm | ≤12mm | 76,83,89,95,102,108,114 |
machine function
1. aluminum alloy body, light weight
2. compact design, suitable for narrow working space
3. modular design
4. high speed , high efficiecny
5. can process carbon steel , stainless steel etc
6. automatic feed
Tool Blades
machine blades material is Cemented carbide , wear-resistant, low loss, the angle can be choose (facing 0 degree , beveling 30degree , 37.5degree ) other angle also be be customized.
