Product Details:
Payment & Shipping Terms:
|
| Feed Way: | Automatic Feed / Manual | Tool Blades Dimension: | 20*20 |
|---|---|---|---|
| Tool Blades Material: | M2 / M42 | Pipe Thickness: | Up To 75mm |
| High Light: | M2 Thick Wall Tube Beveler,Automatic Feed Thick Wall Tube Beveler,16r/Min Thick Wall Tube Beveler |
||

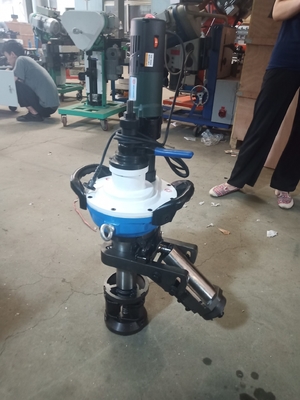

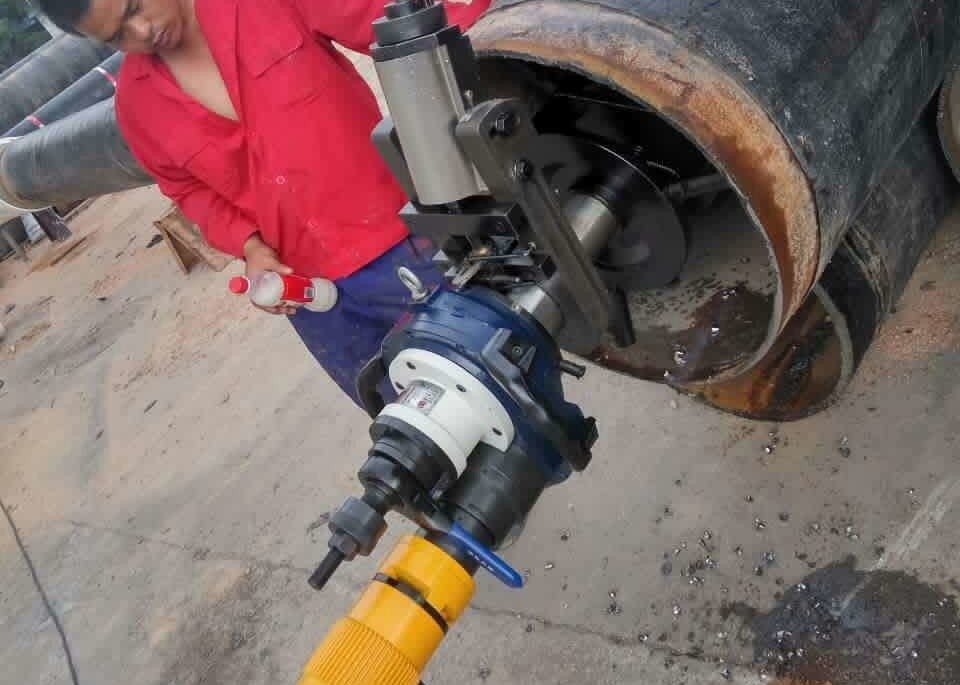

heavy thick pipe wall tube beveler automatic feed chamfering machine
machine introduction
This series machine is ISE series machine updated version. compare with ISE I type, this series machine special for heavy thick pipe, the thickness can do up to 75mm, machine is automaitc feed, the feed Mode (from outside to inside), when do other special bevel or when automaitc parts are broken, we also can do manual operation (machine equip with manual and automaitc operation). machine bevel angle can be adjustable (0-40 degree) through by adjust tool holder angle. very convinient, high efficiecny!
machine specification
| Model | Working Range (Inside diamter) | Wall thickness | Rotation Speed |
| ISE-252-2 | 80-240mm | less than 75mm | 16r/min |
| ISE-352-2 | 150-330mm | less than 75mm | 14r/min |
| ISE-426-2 | 250-426mm | less than 75mm | 12r/min |
| ISE-630-2 | 300-600mm | less than 75mm | 10r/min |
| ISE-850-2 | 600-820mm | less than 75mm | 9r/min |
machine function
