Product Details:
Payment & Shipping Terms:
|
Condition:: | New | Dimension(L*W*H):: | 470*230*240 |
---|---|---|---|
Voltage:: | 380V 50HZ | Weight:: | 16KG |
Rated Power:: | 3KW | Name:: | Gas Cutting Machine |
High Light: | welding and cutting machine,welding & cutting machine |

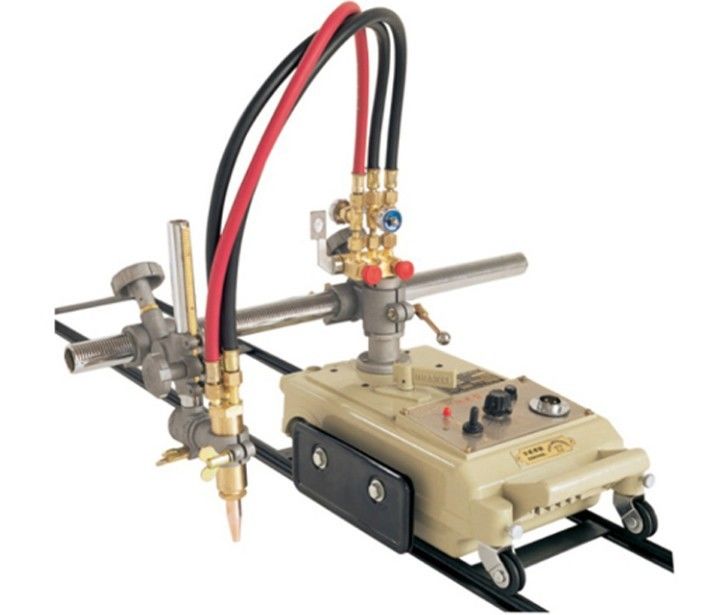

Straight Line Welding And Cutting Equipment , Semi Automatic Gas Cutting Tools
GOODS DESCRIPTION
1. Air frame adopt high strength aluminum materials, precision die casting.
2. Speed control system adopts thyristor speed control tentacles
3. Oxygen acetylene tube adopts imported rubber hose
4. Quick switch installed pipe assembly, and improve the efficacy
5. Give priority to with straight line cutting,can be greater than 200 mm circular cutting.
6. Single cutting torch cutting, grooveI,V(45°).
7. Suitable for shipbuilding, oil, metallurgy, metal structure factory.
1. Weight | 16 kg |
Accessory | 7.8 kg |
2. Machine dimension | 435×210×240mm |
3. Speed control | silicon control |
4. Power source | AC 480V±0.1 50HZ |
5. Cutting speed | 50`750/mm/min |
6. Cutting thickness | 5-100mm |
7. Groove angle | 0-45° |
8. Diameteral of cutting circle | ø200-ø2000mm |

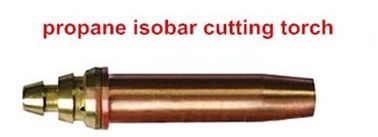

9. Tip | G02(acetylene),G03(propane) |
10. Motor | DC 110V 50HZ 30W 4200r/min |
Carefully take the machine out of its case.
The contents of the standard package are shown below. Check them carefully before assembling the machine.
1. Body | 1set |
2.Torch unit assemblage | 1set |
3. Moving unit assemblage | 1set including left-right, up-down moving unit assemblage and gear rack |
4. Tip (acetylene) | 3pcs |
5. Power wire | 1pc |
6. Specification sheets and certificate of qualification | 1pc each |
7. Gas-in connector /pressure cat | 1set |
8. Ball-pane screw M4 | 2pcs |
Standard accessory | |
1. Cutting circle unit assemblage | 1set |
2. convex guide rail |
2pcs 1.8m/pc or grooved guide rail 1pc 1.8m |
1. Hose:The three hoses are used individually for fuel gas, preheating oxygen and cutting oxygen.
2. Cross hand wheel:To adjust the horizontal distance of torch
3. Cross gear rack
4. Vertical adjusting hand wheel of torch
5. Tip
6. Thermal baffle:To prevent the heat diffusing into the inner of machine.
7. Fuel gas two-port valve:To adjust gas-flow rate.
8. Gas distributor.
9. Clutch hand knob: “STOP” is parting. “START”is combination.
10. Body
11. Speed controller : Increase the speed from “0”to“10”Decease speed from “10” to “0”.
12. Outlet
13. Universal wheel
