Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System

Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System
Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System

Large Image :  Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System

Product Details:
Place of Origin: China
Brand Name: wellnit
Certification: ISO,CE
Model Number: XG-800-6
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: carton
Supply Ability: 5000 Set/Sets per Month
Detailed Product Description
Model Number:: XG-800-6 Voltage:: 110V/220V/380V
Dimension(L*W*H):: 1700*900*1400mm Weight:: 1000KG
Cutting Mode:: Plasma Cutting+ Flame Control System:: START Control System
Cutting Thickness:: 6-200mm Cutting Speed:: 0-6000mm/min
Type:: Metal Cutting Tools Color:: Blue
High Light:

welding and cutting machine

,

welding & cutting machine

Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System


Product Description



The machine adopts numerical control with 2~7 control shafts according to different requirement to meet working various machine models .we also can renew software and hardware according to user´s need. Each type can realize linkage of control shafts and has functions of cutting different intersecting line, intersecting pore, groove of fixed-angle and groove of fixed-point.



(1) Tailored track acquires high-intensity, high-speed and high-precision features.

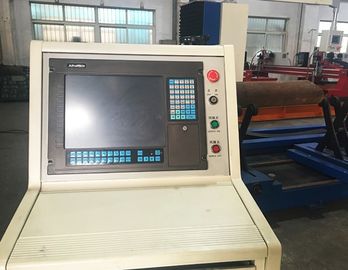

(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,

protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.



Model No. Track thickness Efficient cutting length Efficient Pipe Diameter Supply Voltage
XG-300Q 3-50 3000 Φ50-Φ300 AC220V/50HZ
XG-500Q 3-50 6000 Φ50-Φ500 AC220V/50HZ
XG-800 3-80 9000 Φ60-Φ800 AC220V/50HZ
XG-1000 3-80 12000 Φ60-Φ1000 AC220V/50HZ

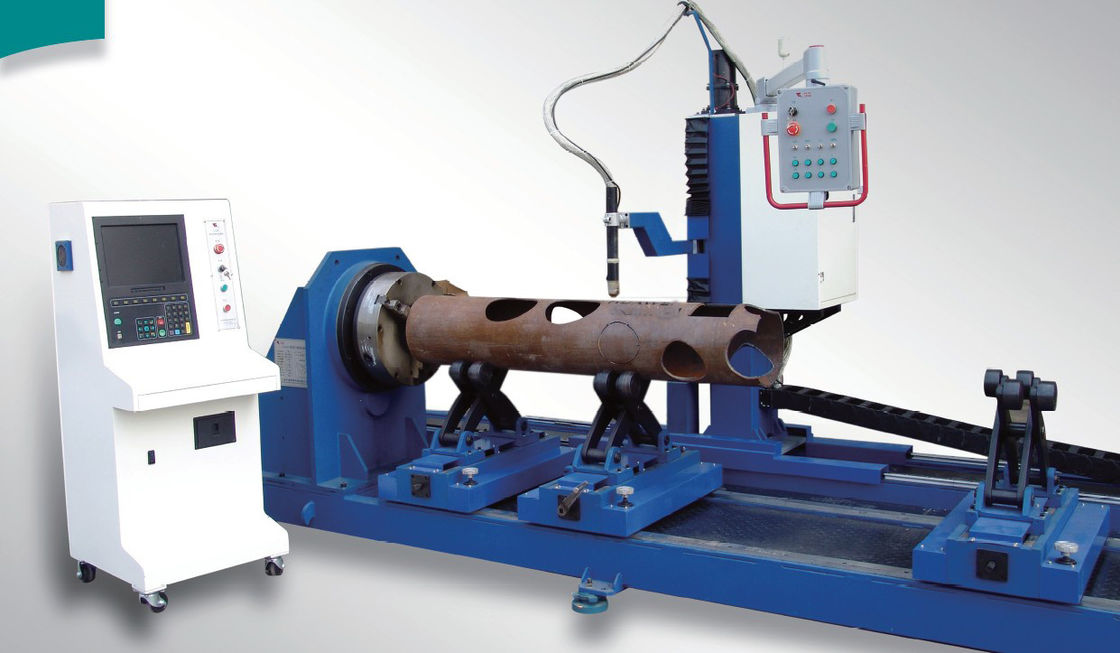

1 system box 6 high-voltage electrical box

2 pillar 7 roller frame

3 torch clamping device 8 lathe bed base

4 spindle box 9 horizontal adjusting shim

5 operation box


Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System 1
Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System 2Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System 3
