Product Details:
Payment & Shipping Terms:
|
| Dimension(L*W*H):: | Customized | Voltage:: | Customized |
|---|---|---|---|
| Rated Power:: | Customized | Cutting Material:: | Stainless Steel, Carbon Steel |
| Cutting Thickness:: | 6-300mm(Flame) | Cutting Plate Shape:: | FOR Straight Strip Cutting |
| Effective Cutting Le: | 10000mm( Or As Your Request) | Cutting Speed: | 0-3000 Mm/min |
| High Light: | welding and cutting machine,welding & cutting machine |
||
China very popular control system ,easier to install and operate, ensure safe production during working time. Precision design structure reduce the friction and raise the steadily which great improve the accuracy.Domestic famous power source and control system,strong driving force, low fuel consumption, easy operation,High flexibility.
| Model | CYLMCUT-4000 | CYLMCUT-5000 | CYLMCUT-6000 | CYLMCUT-7000 |
| Rated Input Voltage(V) | 220V/50HZ | |||
| Rail Gauge(mm) | 4000 | 5000 | 6000 | 7000 |
| Effective Cutting Width(mm) | 3200 | 4200 | 5200 | 6200 |
| Whole Machine Width | 4800 | 5800 | 6800 | 7800 |
| Drive Mode | Unilateral Drive/Double Drive | Double Drive | ||
| Rail Length(mm) | 10000(As your requirements) | |||
| Effective Cutting Length(mm) | 8000(could be customized) | |||
| The Standard Number Of Cutting Torch | 2~4 pcs | |||
| Number of Straight Cutting Torch | 9~16 pcs | |||
| Cutting Depth(mm) | Flame: 6-300 | |||
|
Cutting Speed (mm/min) |
0-3000(Flame cutting) | |||

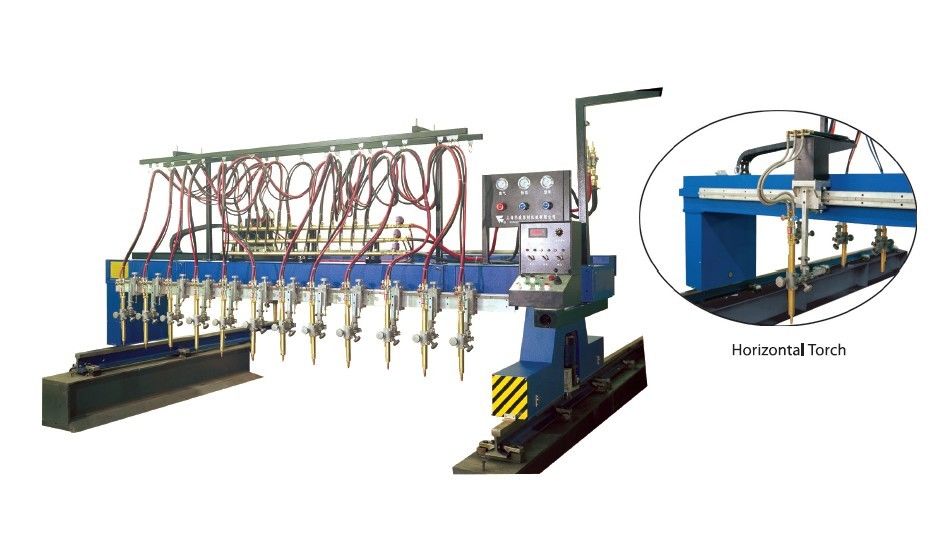

| Structure | Gantry Type | |||
| Material of Plate | Stainless steel, carbon steel or other material | |||
| Application | An arbitrary planar shape plate made of a straight line and a circular arc | |||
| Above are standard designs for cutting machine, accurate specifications could be customized according to buyer's requests. |
||||
Technical advantages
1. Beam: It adopts box welded structure, relieves stress by heat treatment, has good rigidity, no deformation, high precision, light weight and small inertia.
2. Longitudinal drive frame (end frame): Horizontal guide wheels are installed at both ends, which can adjust the compression degree of the eccentric wheel on the bottom of the drive frame to keep the whole machine in a stable direction during the movement. A dust collector is installed to sweep debris accumulated on the surface of the guide rails at any time.
3. Longitudinal and lateral drive: All have precision gear racks for transmission. The horizontal guide rail is made of precision cold-drawn guide plate, the longitudinal guide rail is made of precision-processed rail (heavy rail), and the reduction gear adopts imported precision gear reducer to realize the same direction cutting or mirror cutting.
1.CNC door flame and plasma cutting machine are suitable for precision cutting of various thicknesses of carbon steel, stainless steel and non-ferrous metal sheets.
2.The CNC flame can perform high-quality cutting and cutting of 5-300mm carbon steel. The CNC plasma cutting machine can perform high-quality cutting and cutting of stainless steel, carbon steel and non-ferrous metals with a thickness of 1.0-150mm.
|
Machine details |

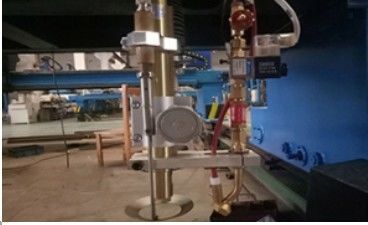

| Functional parts |
| Finished products showing |
