Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
Product Details:
Payment & Shipping Terms:
|
Condition:: | New | Voltage:: | AC220/50V/HZ |
---|---|---|---|
Dimension(L*W*H):: | 1190*335*800mm | Weight:: | 56KG |
Cutting Speed:: | 50-750mm/min | Type:: | Profiling Gas Cutting |
Length Of Line Cutting:: | 1200 Mm | Cutting Thickness:: | 6-100 Mm |
Product Name:: | Profiling Gas Cutter | ||
High Light: | welding and cutting machine,welding & cutting equipment |

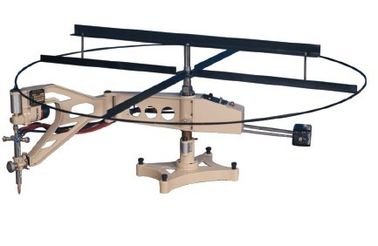

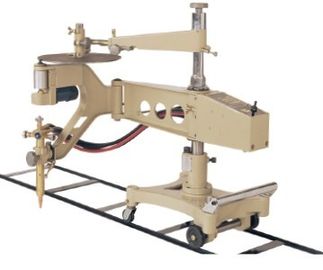

Gerneral Shape Welding Cutting Tools And Accessories Thickness 6 - 100mm
The main body is made of aluminum by die-casting minutely.
Speed system is adjusted by integrated circuit, keeping running steadily.
Oxgen acetylene hose is made of high quality rubber for durable use.
Various kinds of spare parts can be cut as per pattern.
High precision in cutting with well smooth surface.
Especially for batch producing of components in same pattern.
Applied to shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.
Suitable for field work.
Model No. | Supply Voltage | Cutting Thickness | Cutting Speed | Dia.Of.Circle Cutting | Line Cutting | L*W*H | Weight |
V/HZ | MM | MM/MIN | MM | MM | MM | KG | |
CG2-150 | AC220/50 | 60-100 | 50-750 | φ20-600 | 1200 | 1190*335*800 | 56 |
Atavantage:
1. As cutting tip is at the center of magnet roller and cutting in close contact with the tracing template,high-precision and eye-pleasing cut faces are ensured.
2. It is made of stainless steel,which greatly reduces the weight.Therefore it is ideal portable machine.
3. It is designed for cutting a heavy workpieces,and the rail length can be adjusted according to workpiece dimension.This design accordingly expands the cutting capacity and the cutting efficiency.
4. Easy to replace the cutting tip
5. The tip can be replaced and cleaned and the flame adjusted easily by merely raising the tracer head.
BUSINESS SCOPE:
On Welding: TIG, MIG, MAG, MMA arc welding machine and the welding accessories, automatic welding carriage, welding consumables,etc;
On Cutting: gas cutting machines, oxy-fuel cutting machine for plate and pipe, air inverter plasma cutting machine cnc plasma and flame cutting machine, gas cutting accessories, pipe cutting and beveling machine;
Others: welding mask, welding helmets, welding gloves, etc.
WHY CHOOSE US?
1. We are factory in CHINA,have a good price and quality.
2. We have professional staff members and good service.
3. We have a excellent forwarder partner supply timely delivery.
4. We will check the goods one by one ,make sure the good quality.
5. We have good team cooperation ability,supply nice service.
