Product Details:
Payment & Shipping Terms:
|
| Voltage:: | 220/110V | Rated Power:: | 9-10W |
|---|---|---|---|
| Dimension(L*W*H):: | Actual Model | Weight:: | 60Kg |
| Cutting Width:: | 70-1000mm/70-1100mm/70 | Torch No.:: | Three/Four/Five |
| Cutting Speed:: | 50-750 Mm/min | Motor:: | AC 110V 50HZ 30W 4200r/min |
| Speed Control:: | SCR Control | Cutting Thickness:: | 6-50mm |
| Groove Angle: | : 0-45° (I,V,Y) | Cutting Gas:: | Propane/Acetylene |
| Cutting Mode:: | Flame | Cutting Material:: | Mild Steel |
| High Light: | welding and cutting machine,welding & cutting equipment |
||

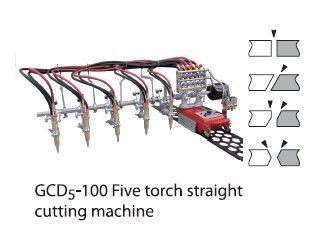

Semi Automatic Gas Welding And Cutting Equipment For Sheet SCR Control
| Model | Voltage | Cutting Thickness | Cutting Speed | Torch Piece | Cutting Width |
| GCD3-100 | 220V | 5-50mm | 50-750mm/min | 3 | 70-1000 |
| GCD4-100 | 220V | 5-50mm | 50-750mm/min | 4 | 70-1000 |
| GCD5-100 | 220V | 5-50mm | 50-750mm/min | 5 | 70-1000 |
This machine is the basis of the original after re-improvement in several parts, which also makes their performance more stable. Gas switches and valves are visible, easy to operate. This series of models are mainly suitable for metal structure etc. This main body is made of high strength alloy aluminum by die-casting. The speed system is adopted controlling silicon unite with infinite variable speed. Quick switch is attached in pipe assembly for higher efficiency in order to control the cutting gas easily at the same time.Used the multi-cutting torches at the same time for higher efficiency.
|
GCD3-100/GCD4-100/GCD5-100
|
|
|
1
|
Main body made of high strength alloy aluminum by die-casting
|
|
2
|
Speed system adopts controlling silicon unite with infinite variable speed
|
|
3
|
Quick switch is attached in pipe assembly for higher efficiency in order to control the cutting gas easily
|
|
4
|
Used the multi-cutting torches at the same time for higher efficiency
|
Technical Parameter
semi automatic gas cutting machine semi automatic gas cutting machine
|
Item
|
GCD3-100
|
GCD4-100
|
GCD5-100
|
|
Cutting Width
|
70-1000mm
|
70-1100mm
|
70-1300mm
|
|
Amount of Torch
|
3 sets
|
3 sets
|
3 sets
|
|
Cutting Speed
|
50-750 mm/min
|
||
|
Motor
|
AC 110V 50HZ 30W 4200r/min
|
||
|
Speed Control
|
SCR Control
|
||
|
Cutting Thickness
|
6-50mm
|
||
|
Groove Angle
|
0-45°
|
||
|
Weight
|
35 kg
|
40kg
|
50kg
|
